Renegade Diablo

Name: Renegade Diablo
Brand: Evolve Skateboards
SKU: BDRDICB7IB16
Price: 2699.00 USD
Availability: InStock

$2,699.00

Finance available from

The Ultimate Off-Road Board
New e-FOC Motor: Unbeatable Power
Binding Ready Carbon Deck

Bindings

Notify Me When Available

**DIABLO RENEGADE SHIPPING SCHEDULE**
BATCH	DELIVERY	UNITS LEFT
#2	Delivering Now	Sold Out
#3 Available NOW	Early November	35% Full

ABOUT THE BOARD

Meet the new Renegade Diablo, crafted for the true off-road adventurer. This board offers more speed with a max of 50 km/h and dual 6374 3500W (7000W) brushless motors, providing unparalleled power. With a range of up to 50 km on pneumatic tyres, you'll never have to worry about range anxiety. The new eFOC 2.0 Motor Controller increases current draw by 20%, delivering more torque at speed and ensuring the ultimate ride.

The Renegade Diablo's deck, made from solid carbon fibre, showcases Evolve's innovative design, combining robust strength with perfect flexibility for extreme riders. Equipped with new suspension trucks called “Renegade Forged,” these trucks are designed and built for maximum strength. Built-in binding hole inserts and Evolve Bindings (sold separately) transform this board into an off-road beast, ready to conquer new limits.

SPECS

DECK MATERIALS:	Carbon fibre
DECK LENGTH:	95cm (37.4 inches)
WHEEL BASE:	96.5 cm (38 inches)
TRUCKS:	Evolve Renegade trucks - Forged/CNC. 39cm (15.5 inch) width, 8mm axles
WHEELS:	Evolve 175mm (7 inch) pneumatic tyres - Evolve all-terrain hubs
MOTOR:	Dual 6374 3500w rated (7000w Total) custom brushless sensored motors
MOTOR CONTROLLER / ESC:	EFOC 2 - Evolve Custom 50V, 200A Dual-Motor Driver, FOC motor commutation, Bluetooth Connection.
BEARINGS:	Evolve Stainless Steel Ball Bearings
BATTERY:	43.2v - 864WH - 20AH - Samsung 50S
RECHARGE:	3.5 hrs - 4 hrs
REMOTE:	Evolve Phaze remote with CNC aluminium-reinforced body
WEIGHT:	16.4 kg (36lbs)
RANGE:	Up to 50km (31 miles)
TOP SPEED:	50km/h (31 mph)
MAX LOAD:	120kg / 265lb
SUITABLE TERRAIN:	Short grass, dirt, gravel, roads and footpaths
SLIDES:	Off road yes, not recommend on sealed surfaces
HILLS:	45% +
BRAKING:	FOC regenerative braking, adjustable brake and acceleration curves
AESTHETICS:	Tough mountain board look and feel with a medium flex Carbon fibre deck
LIGHTS:	Front and rear LED lights. User-customisable control via remote and Evolve app.
BINDINGS:	Optional fitment

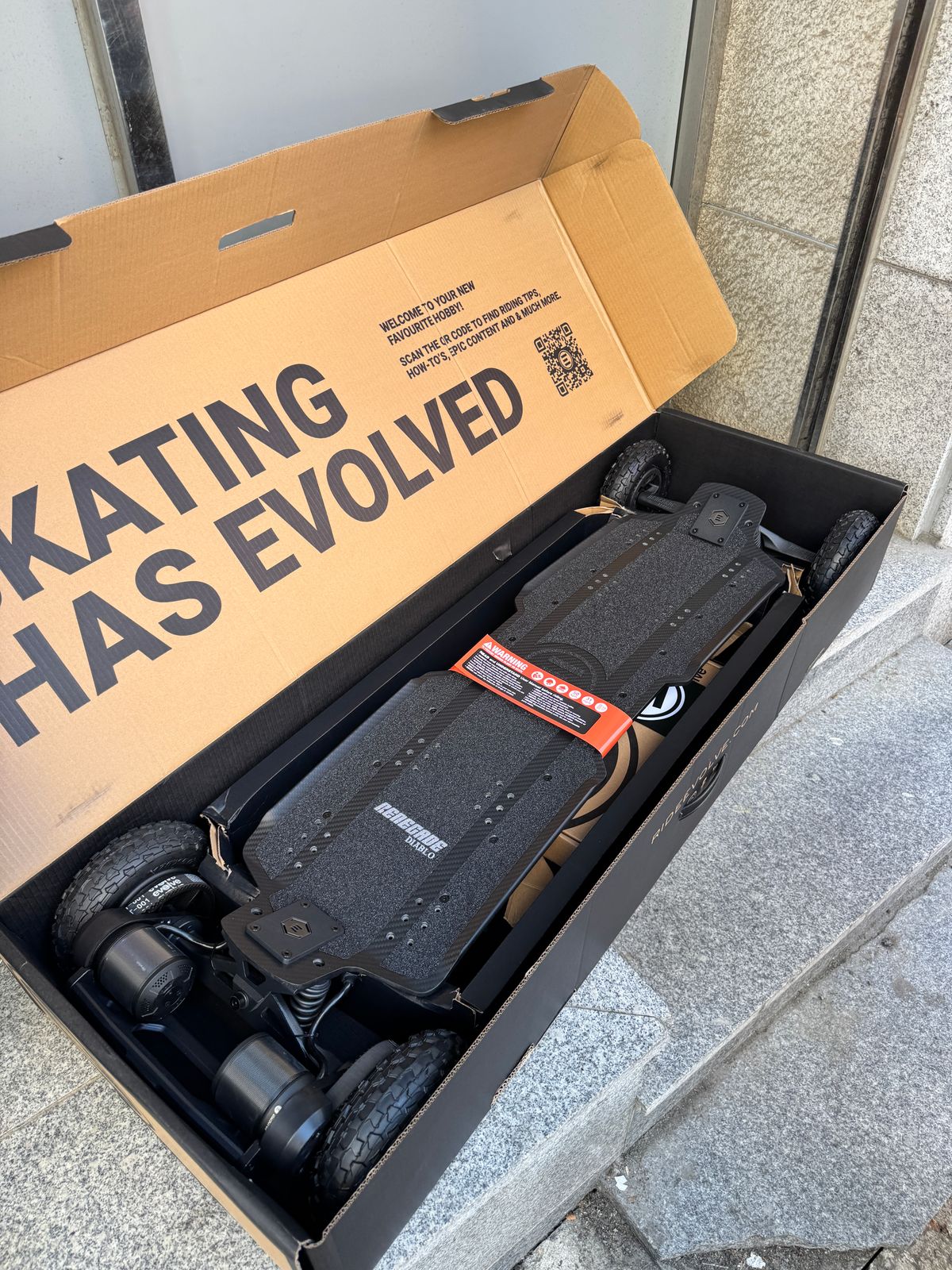

WHAT'S IN THE BOX

Your new Diablo Renegade
Fast charger (5A)
Phaze Remote, leash and USB-C charging cable
Y tool
Spare screws set

SHIPPING

* Please allow extra time for transit during Holiday Periods *

We are the Evolve Skateboards North American Distribution center, we ship anywhere within the United States and Canada.

With the exception of new release pre-orders, most in-stock orders will be fulfilled within 2 business days of the order date. Please allow 1-2 days additional processing time for Custom Board Builder orders.

All Skateboards must be shipped as Hazmat or Dangerous goods shipments. Please note; FedEx and UPS do not guarantee expeditated services for Hazmat or Dangerous shipments. If an expedited delivery option is selected and your shipment is delayed, FedEx will not refund payment. Consequently, we are unable to refund shipping payments for delayed shipments.
Due to shipping restrictions, we are unable to ship HazMat/DG shipments to certain zip codes. If you zip code is unable to receive these shipments, please contact us directly to discuss alternative pick up locations

Canadian Customers: Customers are responsible for Customs duties, taxes, and brokerage fees(collected at checkout). All orders containing a skateboard order must ship FedEx Express service only.

Mexican Customers: Due to our carriers current policies, at this time we are unable to ship orders containing a skateboards to addresses in Mexico.

APO, FPO Addresses: We ship orders to APO and FPO addresses, however we are unable to ship complete boards to APO and FPO addresses. Contact our headquarters in Australia at ask@evolveskateboardsusa.com.au for information on purchasing a board in your location.

International Customers: Outside of North America? See our International Distributor list for a distributor in your region, or contact our headquarters in Australia for information on placing an order: ask@evolveskateboards.com.au

Ground Shipping Estimated Transit Times

Once your order is received and payment confirmed, your order will be shipped via the method chosen during checkout. Most in stock orders ship within 1-2 business days however, processing time may increase during heavy traffic times such as peak season and holidays. Order cutoff times for shipping services are 9am for USPS and 2pm for FedEx and UPS. Orders received after these times will be dispatched the following day.

Pre-Order reservations will ship based on the estimation given at the time of purchase. Pre-Order reservation ship times are estimations and are subject to unforeseen delays. You are welcome to cancel your Pre-Order reservation and receive a full refund at any time prior to shipping. To cancel your Pre-Order Reservation, contact our customer service department at info@evolveskateboardsusa.com

FAQ

1. Whats the difference between the Hadean and Diablo series?

The Diablo Series is Evolves latest technology release and supersedes the Hadean series. Comparing to the Hadean boards, the diablo series uses larger more powerful motors, a new EFOC 2.0 ESC, it has a higher top speed rating, has 20% more ride times due to the larger capacity battery, stronger acceleration and braking performance and new Forged CNC SuperCarve 2 truck design. The Diablo also comes with an upgrade Software package.

2. Can I upgrade my Hadean board to perform like the Diablo?

It's possible to turn the Hadean into a Diablo, however to do this it will require a new Samsung 50S battery, 2 new 6374 motors and a new EFOC 2.0 ESC . Swapping these parts will be an expensive upgrade, its far better off purchasing the complete Diablo board which includes a new deck and the SuperCarve 2.0 trucks.

3. Can the Renegade be upgraded to the Renegade Diablo?

Yes this is possible. To do this you will need 2 new 6374 motors, a new EFOC 2.0 ESC, new remote firmware and new BMS firmware. Please contact Evolve customer service for enquiries.

4. Can I install the new SuperCarve 2 trucks on my Evolve board?

Yes you can. However you will also need the new AT or Street drive gears that fit the new truck axle. To purchase the new SuperCarve 2 trucks please see the link or contact Evolve customer service for enquiries.

5. Why does my remote vibrate when accelerating hard or riding up a hill?

If your remote vibrates under these riding conditions its possible you have activated ‘Over Current mode’. The Diablo board allows for a large amount of current to be used for a period of 7-8 seconds only. After 7-8 seconds the remote will drop to Sport mode until you release the acceleration trigger in which the remote automatically returns to Corsa mode.

6. Can I install the Diablo 6374 motors on my Hadean?

The motors can fit the Hadean motor plates, however they will not work properly with the Hadean motor controller, BMS and remote due to firmware incompatibility.

7. Why is my remote displaying ‘Heat’ and vibrating?

If your remote displays Heat this means you have activated heat protection on your skateboard and the remote is telling you this. If the motor controller gets over 85 degrees or the battery gets above 70 degrees the motor controller will reduce power until the system recovers and cools down.
